MT3 Revolving Pipe Center 20–95mm Capacity Heavy Duty Lathe Live Center for Pipe, Tube & Hollow Work Holding Morse Taper 3

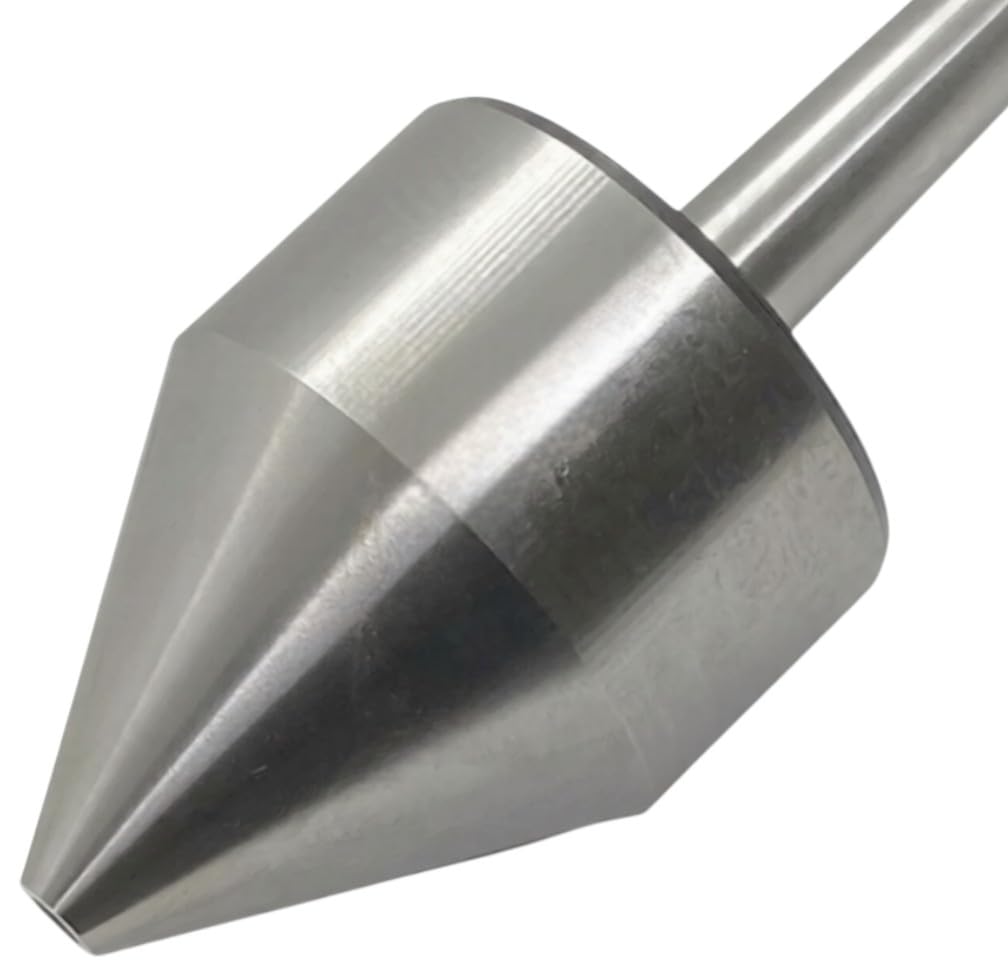

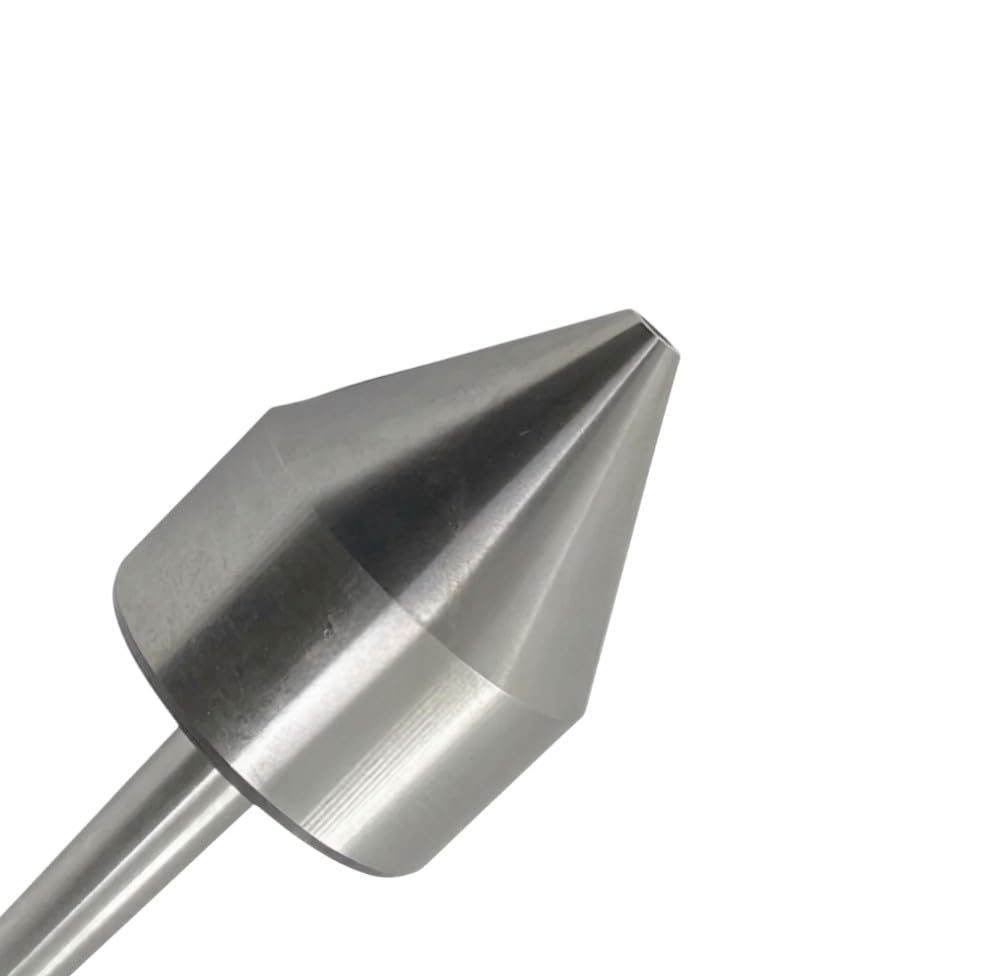

The MT3 Revolving Pipe Center (20–95mm Capacity) is a heavy-duty lathe live center engineered specifically for holding pipes, tubes, hollow components, and cored workpieces with maximum stability and precision. Unlike standard pointed live centers, this pipe center provides reliable internal support for hollow jobs, making it an essential accessory for professional machinists and industrial workshops. Featuring a Morse Taper 3 (MT3) shank, the center mounts securely in the lathe tailstock and ensures accurate alignment during operation. The preloaded, well-greased multi-bearing system enables smooth, low-friction rotation while delivering excellent thrust and radial load capacity, even during heavy-duty turning operations. The head is manufactured from heat-treated high carbon alloy steel and hardened to 55–60 HRC, offering exceptional wear resistance and long service life under demanding machining conditions. For ease of maintenance, grease nipples are provided on both the tail and body, allowing simple regreasing to keep the bearings running smoothly. Ideal for lathe machines, pipe turning, tube machining, hollow jobs, and large-diameter workpieces, this MT3 revolving pipe center is a dependable solution for achieving stable support, improved surface finish, and consistent machining accuracy.

• Wide Holding Capacity for Pipe & Hollow Jobs – Designed to securely hold pipes, tubes, hollow workpieces, and cored holes with a working capacity range of 20mm to 95mm, making it ideal for both medium and large-diameter turning applications on lathes.
• Morse Taper 3 (MT3) Precision Shank – Features a precisely ground MT3 shank that ensures accurate alignment, strong grip, and vibration-free performance when mounted in the tailstock of manual or CNC lathe machines.
• Heavy Duty Revolving / Live Center Design – Equipped with a preloaded multi-bearing system that is well-greased for smooth rotation, excellent concentricity, and long service life, even under continuous industrial use.
• High Thrust & Radial Load Capacity – Built to handle heavy thrust and radial loads, making this revolving pipe center suitable for demanding turning operations, long workpieces, and high-pressure machining tasks.
• Hardened Alloy Steel Head for Long Life – The head is manufactured from heat-treated high carbon alloy steel with a hardness of 55–60 HRC, delivering superior wear resistance, durability, and consistent performance over time.
• Easy Maintenance with Grease Nipples – Grease nipples provided on both the tail and body allow quick and convenient regreasing; use only high-quality bearing grease or oil to maintain optimal bearing performance.
• Precision Engineered for Accuracy & Stability – Designed for stable work holding and precise rotation, helping reduce runout, improve surface finish, and increase overall machining accuracy.
• Ideal for Workshop & Industrial Use – Suitable for tool rooms, production shops, fabrication units, and maintenance workshops requiring a reliable MT3 revolving pipe center for hollow and pipe work.
